Widgets

Regular

CommandButton

A button executing a command when pushed. The background image is composed vertically of 2 frames, one for each button state.

<CommandButton command="launch_url" data0="https://www.plogue.com/help.html"
  image="btn_help.png" x="600" y="280" w="134" h="38" transparent="1"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
command	string	a command, see table below
data0	string	if present, specify a command parameter or URL
data1	string	if present, specify a dialog window title
image	string	an image file name (2 vertical frames button)
inverted	int	if 1, the pushed / released image frames are read in reverse

Some of possible commands:

Command name	Description / Value(s)
edit
launch_url	value in data0
license	or license_NNNN

Keyboard

A piano keyboard.

<Keyboard param="DID_KEYBOARDGUI" x="10" y="435" w="702" h="64"
  start_key="0" end_key="108"
  offset0="8" offset1="30" offset2="41" offset3="63" offset4="74" offset5="85"
  image="keyboard/skinTRANS1.png"
  image2="keyboard/skin4.png"
  image3="keyboard/dark50.png"
  image4="keyboard/blue50.png"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
image	string	filename for the enabled white keys when pressed and unpressed
image2	string	filename for the enabled black keys when pressed and unpressed
image3	string	filename for the shadow overlaid on the disabled keys
image4	string	filename for the shadow overlaid on the key switches
offsetN	int	with N = 0 to 5, 6 in total TODO
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING
start_key	int	first note key, e.g.: 0
end_key	int	last note key, e.g.: 108

Knob

Rotary controller, using a vertical multi frame image.

<Knob param="10" x="333" y="17"
  image="knob_128.png" frames="128" vdefault="0.5"
/>

Name	Type	Description / Value(s)
x / y	int	coordinates
eslot	int	TODO: can be empty
frames	int	number of image frames
image	string	the name of the image file (vertical frame images)
inverse	int	if 1, the image frames are read in reverse
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING
vdefault	float	the default value

Label

A text label to display some value set from another control, associated with the same param.

<Label param="10" x="333" y="59" w="50" h="18" format="FORMAT_STEREOPAN"
  vdefault="0.5" transparent="1" alignment="center" color_text="#FFFFFFFF"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
alignment	enum	left / center / right, the text alignment inside the rect
color_text	RGBA	text color
factor	int	number to be multiplied with the float, 0 to 1 value
format	string	printf format string or predefined (e.g.: FORMAT_LINEAR2DB / FORMAT_STEREOPAN)
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING
transparent	int	if 1, use a transparent background
vdefault	float	the default value

DragLabel

A label that displays a value that can be changed by clicking and moving the mouse over it; up and down or left and right.

<DragLabel param="3" eslot="" x="125" y="302" w="60" h="18"
  format="%5.f Hz" offset="0.02325"   vdefault="0.713" factor="21500"
  transparent="1"  alignment="center" color_text="#5f9cf8ff"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
alignment	enum	left / center / right, the text alignment inside the rect
color_text	RGBA	text color
factor	int	number to be multiplied with the float, 0 to 1 value
format	string	printf format string / FORMAT_LINEAR2DB / FORMAT_STEREOPAN
offset	int	value offset
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING
transparent	int	if 1, use a transparent background
vdefault	float	the default value

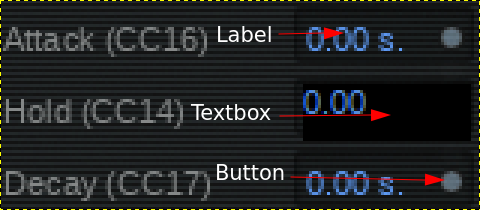

NumericTextBox

A composite widget with a DragLabel on the left and a button on the right. When the button is pressed, a textbox appears to permit to digit the value to set.

<NumericTextBox param="1" x="126" y="96" w="55" h="18"
  format="%4.f ct." offset="0"      factor="1200"
  alignment="left"  transparent="1" color_text="#5f9cf8ff"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
alignment	enum	left / center / right, the text alignment inside the rect
color_text	RGBA	text color
factor	int	number to be multiplied with the float, 0 to 1 value
format	string	printf format string / FORMAT_LINEAR2DB / FORMAT_STEREOPAN
offset	int	value offset
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING
transparent	int	if 1, use a transparent background

OnOffButton

A switch button, using a 2 frames image like CommandButton.

<OnOffButton image="keyboard/pedal_l.png" param="67"
  x="720" y="445" w="14" h="35"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
image	string	the name of the image file
inverse	int	if 1, the on / off image frames are read in reverse
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING

OptionMenu

A LMB / RMB clickable label area to display a menu.

<OptionMenu param="DID_SLOTPOLY" x="488" y="43" w="33" h="12"
  font_size="normal" transparent="1" alignment="center" color_text="#FFFFFFFF"
  vdefault="64"
>
  <OptionItem name="-GPolyphony" value="0" />
  <OptionItem name="1"   value="1" />
  <OptionItem name="2"   value="2" />
  <OptionItem name="8"   value="8" />
  <OptionItem name="16"  value="16" />
  <OptionItem name="32"  value="32" />
  <OptionItem name="64"  value="64" />
  <OptionItem name="128" value="128" />
</OptionMenu>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
alignment	enum	left / center / right, the text alignment inside the rect
color_text	RGBA	e.g.: "#D7DAE0FF"
font_size	enum	verysmall / small / normal / big / verybig
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING
transparent	int	if 1, use a transparent background
vdefault	float	the default value

OptionItem

OptionMenu item.

Name	Type	Description / Value(s)
name	string	the menuitem label
value	float	the value associated e.g.: 0.5678

<PrefixName>Menu

Similar to OptionMenu above, without items specified in XML.
PrefixName varies, e.g.: FileMenu/KSMenu/OutputMenu/PresetMenu.
When image_{previous|next} are present, the menu items can be changed by pressing over the relative image, usually up and down buttons like in a spinner widget.

<FileMenu param="DID_FILENAME" x="90" y="20" w="157" h="19"
  color_text="#000000ff"  font_size="normal" transparent="1"
  image_next="next_v.png" image_previous="previous_v.png"
  alignment="left"        image_vertical_align="1"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
alignment	enum	left / center / right, the text alignment inside the rect
color_text	RGBA	text color
entry_empty	int	TODO: might be int like transparent
entry_import	int	TODO: might be int like transparent
entry_reload	int	TODO: might be int like transparent
entry_saveasdefault	int	TODO: might be int like transparent
eslot	int	TODO
font_size	enum	verysmall / small / normal / big / verybig
image_next	string	arrow image filename
image_previous	string	arrow image filename
image_vertical_align	int	if 1, the images are aligned vertically
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING
target	URL	TODO: some effect URL, e.g.: "com.Vendor.Effectname"
transparent	int	if 1, use a transparent background
type	URL	TODO: same as target

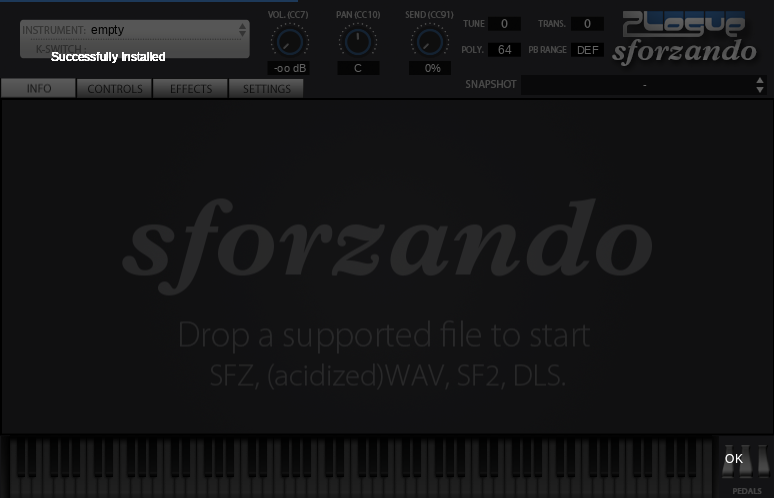

PopupOverlay

Overlay widget, usually a transparent panel over the full client size of the application window with an OK label at the bottom right. Used to display some messages, such as after registering a new ARIA instrument. Can be closed by clicking on it.

<PopupOverlay x="0" y="0" w="870" h="460" color_back="#00000060" />

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
color_back	RGBA	background color (e.g.: #00000060)

ProgressBar

Used to view the loading progress of a sampled instrument.

<ProgressBar x="27" y="33" w="836" h="2" image="pb.png" />

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
image	string	image filename for a 2 frames progress bar
		TODO: empty and full? Verify this

Rect

A drawn rectangle.

<Rect x="0" y="1" w="775" h="3"
  fill_color="#5e5e5e88" drawMode="filled" frameWidth="0"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
drawMode	enum	filled / stroked
fill_color	RGBA	fill color
frameWidth	int	TODO

Slider

Same purpose as a Knob, but with a linear, horizontal or vertical groove and a movable handle.

<Slider param="7" x="10" y="142" w="28" h="200" orientation="vertical"
  image_handle="fader.png" image_bg="backer_fader.png"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
image_bg	string	the name of the image file (slider trail)
image_handle	string	the name of the image file (slider handle)
orientation	enum	horizontal / vertical
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING

SpecialDigitKnob

A clickable label that changes its value when keeping pressed the LMB and moving the mouse: down/left to decrease or up/right to increase its value. Value can be positive or negative.

<SpecialDigitKnob param="DID_SLOTTUNING" x="488" y="16" h="15" w="33"
  image="numbers_0-9_07.png" minus_image="neg.png" plus_image="pos.png"
  nbh="15" nbw="7" vmin="-100" vmax="100" digit_min="-100" digit_max="100"
  base="0" numbers="3" granularity="1" show_leading_zeros="0" alignment="center"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
alignment	enum	left / center / right, the text alignment inside the rect
base	int	TODO
digit_max	int	maximum value, e.g.: "100" TODO: what's the difference with vmax?
digit_min	int	minimum value, e.g.: "-100" TODO: what's the difference with vmin?
granularity	int	changing value steps
image	string	filename of the image used for the numeric values
minus_image	string	filename of the image used as minus for negative values
plus_image	string	filename of the image used as plus for positive values
nbh	int	the number image height
nbw	int	the number image width
numbers	int	value size, e.g.: 2 for 0-99 or 3 for 0-100
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING
show_leading_zeros	int	whether to show leading 0s, e.g.: 000 to 100
vmax	int	maximum value, e.g.: "100"
vmin	int	minimum value, e.g.: "-100"

Splash

TODO: might be a splashscreen window

<Splash x="0" y="0" w="774" h="470" image="SplashBG.png" />

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
image	string	the filename of the background image
url	string	URL TODO: probably open in browser on image click

StaticImage

<StaticImage x="0" y="0" w="775" h="335" image="aria_info_sfz.png" />

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
image	string	the name of the image file
transparent	int	if 1, use a transparent background

StaticText

Non variable Label like control

<StaticText text="FX Type :" x="25" y="20" w="50" h="18"
  color_text="#a3a3a4FF" alignment="center"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
alignment	enum	left / center / right, the text alignment inside the rect
color_back	RGBA	background color
color_border	RGBA	border color
color_text	RGBA	text color
font_size	enum	verysmall / small / normal / big / verybig
text	string	label displayed text
transparent	int	if 1, use a transparent background

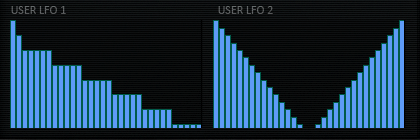

StepEditor

Composed of a specified number of vertical bars, each of which represents the value of a single step; might be used as curve editor.

<StepEditor target="com.Plogue.Aria.LFO.user1" param="9876"
  x="216" y="241" w="193" h="112" voffset="10" hoffset="10"
  vmin="0" vmax="15" step_increment="1" nbstep="32"
  border_color="#005B4AFF" fill_color="#5e9bf7ff" zero_color="#004B3AFF"
  editor_border_color="#000000FF" transparent="1" image="bg_black.png"
/>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
border_color	RGBA	bars border color
editor_border_color	RGBA	editor border color
fill_color	RGBA	bars color
zero_color	RGBA	TODO
image	string	the relative path to the background image file
hoffset	int	TODO: might be border / margin / padding value
voffset	int	TODO: might be border / margin / padding value
nbstep	int	bars count
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING
step_increment	int	step increment
target	URL	TODO: some effect URL, e.g.: "com.Vendor.Effectname"
transparent	int	if 1, use a transparent background
vmax	int	maximum value, e.g.: "15"
vmin	int	minimum value, e.g.: "0"

Containers

GUI

One or more gui file(s) are usually located in a GUI directory for any product type, instrument or application. Contains the various widgets definitions.

GUI/aria_info.xml:

<!--
  It's a GUI file, describing an (opaque?) image with a rectangle area
  of 775x330 size inside a 787x335 container area.
-->
<GUI w="787" h="335"  >
  <StaticImage  x="0" y="0" w="775" h="330" image="Infotab.png"/>
</GUI>

1st instrument set, GUI/01-Kitchen-X.xml:

<!--
  Like above, but having also the GUI controls for CCs and the like over
  a transparent (?) background image.
-->
<GUI w="775" h="335">
  <StaticImage x="0" y="0" w="775" h="330" image="Control.png" transparent="1"/>

  <!-- Other GUI widgets follows here (Sliders) -->
</GUI>

The GUI node accepts the following parameters:

Name	Type	Description / Values
w / h	int	size
generic_h / generic_w	int	TODO
generic_s	int	TODO
DrawingBoundaries	int	TODO
color_back	RGBA	background color
color_border	RGBA	border color
color_DrawingBoundaries	RGBA	TODO
color_text	RGBA	text color
font_size	enum	verysmall / small / normal / big / verybig
idleThrottle	int	TODO
image	string	background image filename

GUIContainer

An abstract class / layout to contain GUI pages, used in TabView Panes.

<GUIContainer path="gui_settings.xml"/>

Name	Type	Description / Value(s)
eslot	int	TODO
param	int	numeric, possibly CC, or named id e.g.: 10 or DID_SOMETHING
param_offset	int	TODO
path	string	xml filename of the contained GUI or define macro *ID
slot	int	TODO
xoffset	int	TODO: might be border / margin / padding value
yoffset	int	TODO: might be border / margin / padding value

TabView

Tabbed control, with Panes as pages.

<TabView id="controls" x="0" y="78" w="774" h="356"
  color_selected="#FFD800FF" color_deselected="#FFFFFFFF"
  image="btn_controls.png" position="top" alignment="left"
>
    <Pane image="aria_info_default.png" imageb="btn_info.png">
        <GUIContainer path="*ARIA_INFO"/>
    </Pane>
    <Pane image="" imageb="btn_controls.png">
        <GUIContainer param="DID_FILENAME" path="*ARIA_CONTROLS"/>
    </Pane>
    <Pane image="" imageb="btn_FX.png">
        <GUIContainer eslot="0" param="DID_EFILENAME" path="*ARIA_EFFECTS"
          xoffset="0" yoffset="0"
        />
        <StaticText text="FX Type :" x="25" y="20" w="50" h="18"
          color_text="#a3a3a4FF" alignment="center"
        />
        <FileMenu eslot="0" param="DID_EFILENAME" x="81" y="20" w="108" h="18"
          color_text="#FFFFFFFF" transparent="0" alignment="center"
          entry_empty="0" entry_reload="0" entry_import="0"
          image_next="next_8px.png" image_previous="previous_8px.png"
        />
    </Pane>
    <Pane image="" imageb="btn_settings.png">
        <GUIContainer path="gui_settings.xml"/>
    </Pane>
</TabView>

Name	Type	Description / Value(s)
x / y / w / h	int	coordinates and size
alignment	enum	tab buttons alignment: left / center / right
color_deselected	RGBA	TODO
color_selected	RGBA	TODO
id	string	the control id
image	string	image filename of the button background (2 frames: clicked and released)
position	enum	tab buttons position: top / bottom / left / right

Pane

TabView' page pane.

Name	Type	Description / Value(s)
image	image	relative path to the pane background image file, optional
imageb	image	relative path to the button background image file; 2 frames: clicked and released
